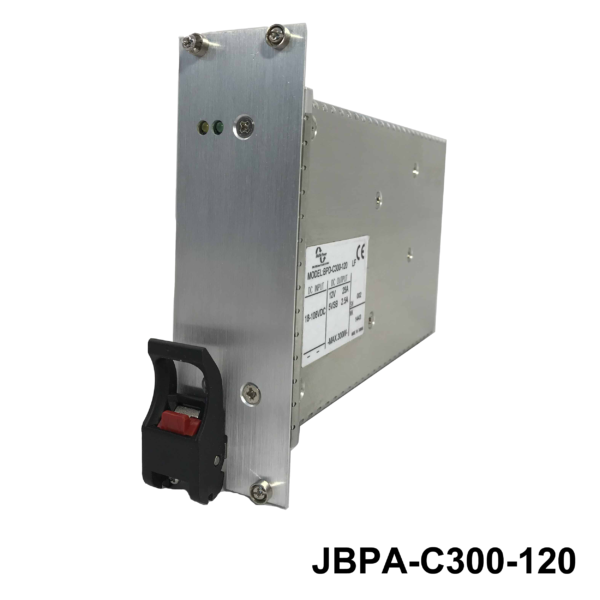

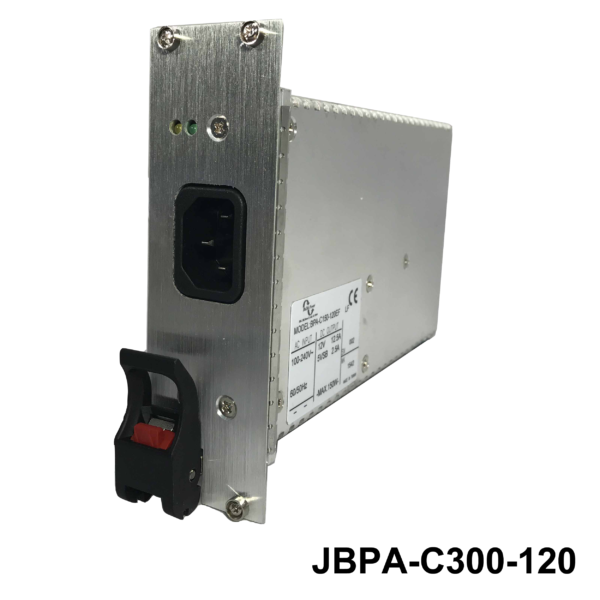

JBPA-C300-120 Series
FEATURES:
- Output Power: 300W
- Input Voltage Range: 100–240 VAC Single-Phase
- Output Spec: 12 @ 25A, 12V Standby @ 2.5A
- Efficiency: up to 90%
- Temperature: -40°C to +70°C Operation
- Signals: Power Fail, PS ON
- EMI- EN61000 Class A
- UL/CCC/Demko Safety Approved
- Description
- Data Sheets
Description
The JBPA-C300-120 is a highly reliable cPCI Serial Power supply used for CompactPCI Serial Systems. Capable of delivering up to 300W with customer supplied 20 CFM forced-air cooling. With a full range input of 90- 264 VAC, this power supply module achieves the highest performance and efficiency by incorporating LLC half bridge topology and synchronous rectification. The JBPA-C300 family also includes PMBus interface to monitor and control all essential functions of the power supply module. Custom controls available – consult factory for details.
