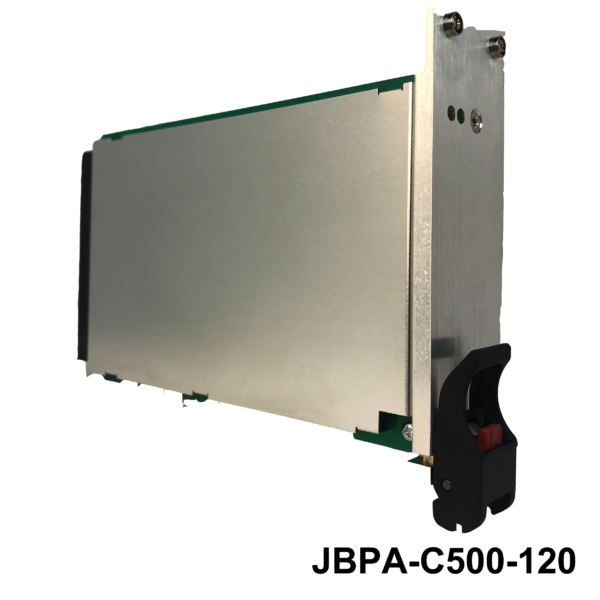

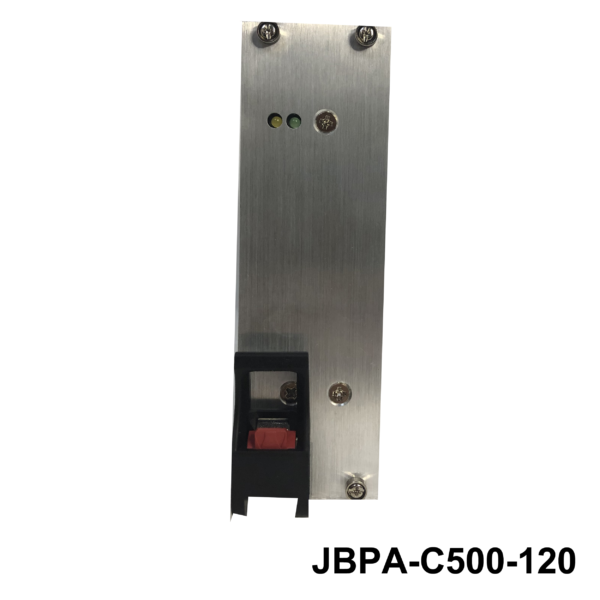

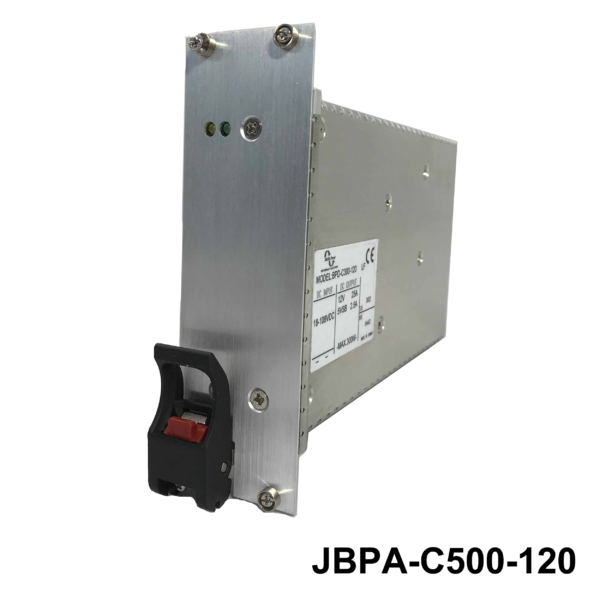

JBPA-C500-120 Series
FEATURES:
- Output Power: 500W
- Input Voltage Range: 100–240 VAC Single Phase
- Output Spec: 12V @ 42A, 5V Standby @ 2.5A
- Efficiency: up tp 90%
- Temperature: -40°C to +70°C Operation
- Signals: Power Fail, PS ON.
- EMI: EN61000 Class A
- UL/ Demko Safety Approved
- Description
- Data Sheets
Description
The JBPA-C500-120 is a highly reliable cPCI Serial Power supply used for CompactPCI Serial Systems. It’s capable of delivering up to 500W with 20 CFM forced-air cooling. With a full range input of 90- 264 VAC, this power supply module achieves the highest performance and efficiency by incorporating LLC half bridge topology and synchronous rectification. The JBPA-C500 family also includes PMBus interface to monitor and control all essential functions of the power supply module. Custom controls available – consult factory for details.
