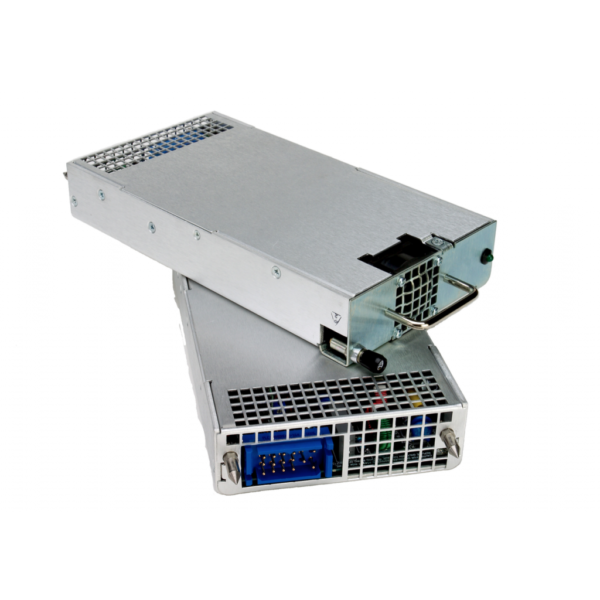

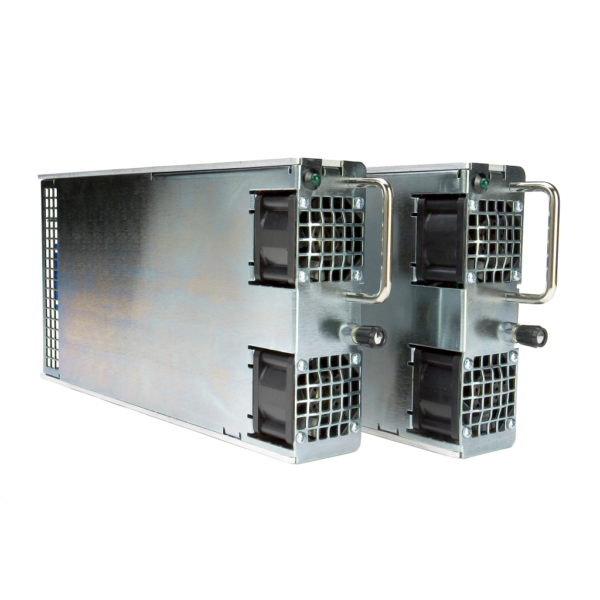

Specialty Switching Power Supply Modules
FEATURES:
- 90-264VAC Input
- 12-54VDC Outputs with Choice of Standby Voltages
- Full Power to 50C Ambient with Derating to 70C
- Custom Performance & Mechanical Modifications Readily Available
- Compact Sizes – 1U high
- Hot swap: N+1 Redundant with internal Oring diodes
- Single and multiple outputs
- 200W-1500+W output power
- >0.99 line Power Factor Corrected typical at AC 115V
- High Density
- Agency approvals (see spec sheets for details)
- Models can be ruggedized against high shock, vibration, and humidity to meetMIL-STD-810 requirements
- Description
- Models
Description
Jasper’s ultra-reliable Modular and Rack-Mount Specialty Power Supplies are most commonly used in redundant systems in applications such as nuclear plants, server rooms, security systems, medical applications, and communication systems where the highest quality hot swap power supplies and medical power supplies are required. Select models offer the following features:
- 90-264VAC Input
- 12-54VDC Outputs with Choice of Standby Voltages
- Full Power to 50C Ambient with Derating to 70C
- Custom Performance & Mechanical Modifications Readily Available
- Compact Sizes – 1U high
- Hot swap: N+1 Redundant with internal Oring diodes
- Single and multiple outputs
- 200W-1500+W output power
- >0.99 line Power Factor Corrected typical at AC 115V
- High Density
- Agency approvals (see spec sheets for details)
- Models can be ruggedized against high shock, vibration, and humidity to meet MIL-STD-810 requirements
| Model # (Click for data sheet) | Watts | Size | Outputs | O/P Voltages | Get Quote |
|---|---|---|---|---|---|
| HTL201 | 200 | 1.6 x 5 x 9.5" | Single | 12-54V | |
| HTL200 | 200 | 1.6 x 5 x 11.5" | Multiple | Various | |
| HTL301 | 300 | 1.6 x 5 x 9.5" | Single | 12-54V | |
| HTL300 | 300 | 1.6 x 5 x 11.5" | Multiple | Various | |
| HTL401 | 400 | 1.6 x 5 x 9.5" | Single | 24-54V | |
| HTL401 | 400 | 1.6 x 5 x 11.5" | Multiple | Various | |
| HML501-2 | 500 | 1.6 x 5.2 x 10.5" | Single | 12V | |
| HML601 | 600 | 1.6 x 5.2 x 10.2" | Single | 24-54V | |
| HML651-2 | 650 | 1.6 x 5.2 x 10.2" | Single | 12V | |
| HML801-2 | 650 | 1.6 x 5.2 x 10.5" | Single | 12V | |
| HML801 | 800 | 1.6 x 5.2 x 10.2" | Single | 24-54V | |
| HAL1201 | 1200 | 1.75 x 5 x 11" | Single | 12-54V | |
| HAL1501 | 1500 | 1.75 x 5 x 11" | Single | 12-54V |
