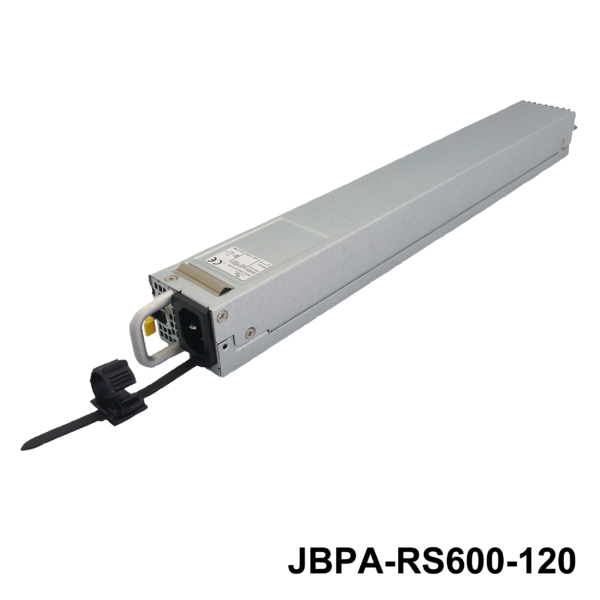

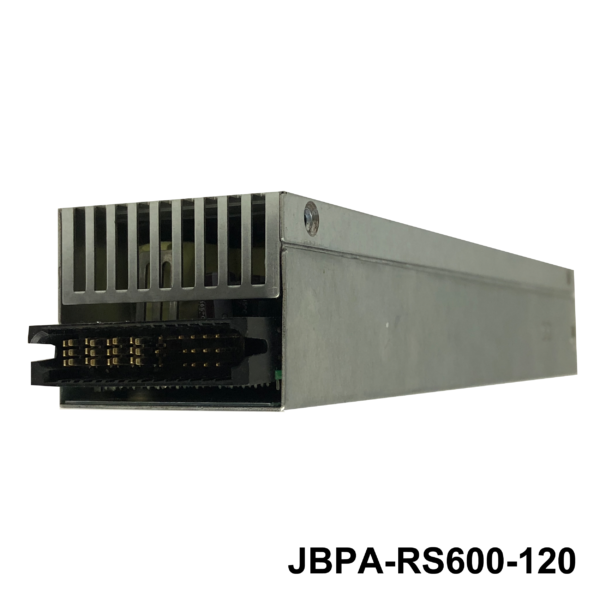

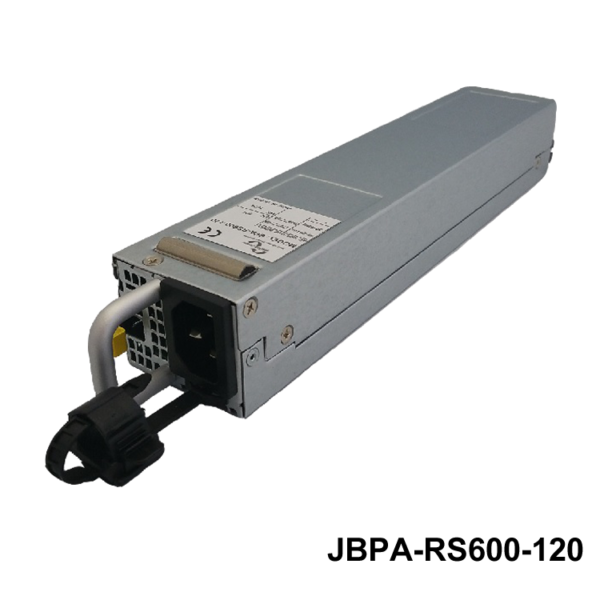

JBPA-RS600-120 Series
FEATURES:
- 600W Output Power
- 100–240 VAC Single Phase Input
- Output Spec: 12V @ 50A, 12V Standby @ 1.5A
- Efficiency: up to 92%
- Temperature: -40°C to +70°C
- Operation Signals- AC OK, DC OK, PS ON, Alert
- EMI: EN61000 Class A
- UL/ Demko Safety Approved
- Description
- Data Sheets
Description
The JBPA-RS600-120 Series is a highly reliable cPCI Serial Power supply used for CompactPCI Serial Systems. It’s capable of delivering up to 600W. With a full range input of 90-264 VAC, this power supply module achieves the highest performance and efficiency by incorporating LLC half bridge topology and synchronous rectification.
