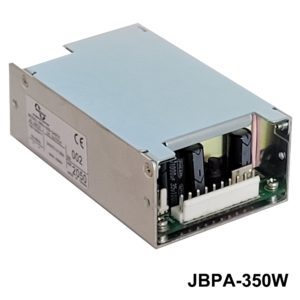

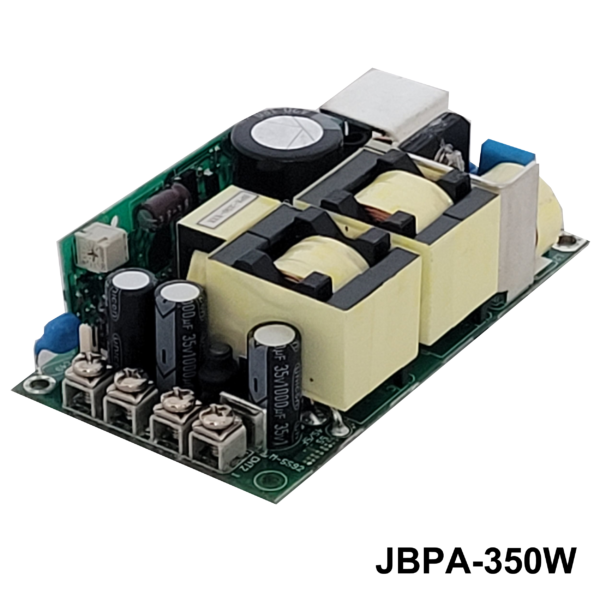

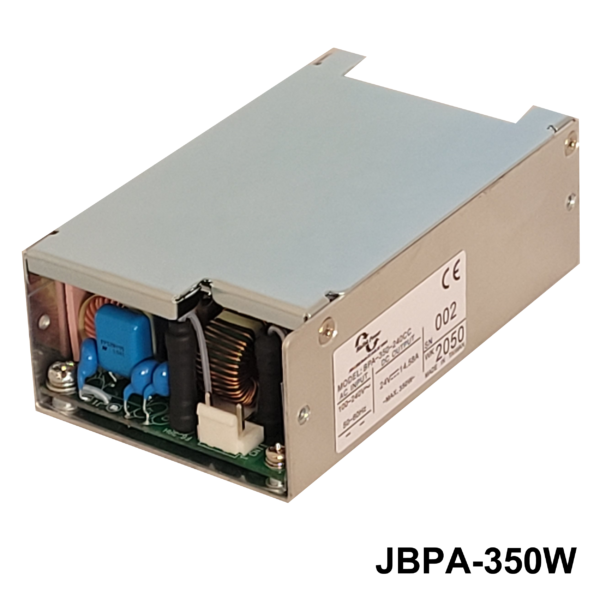

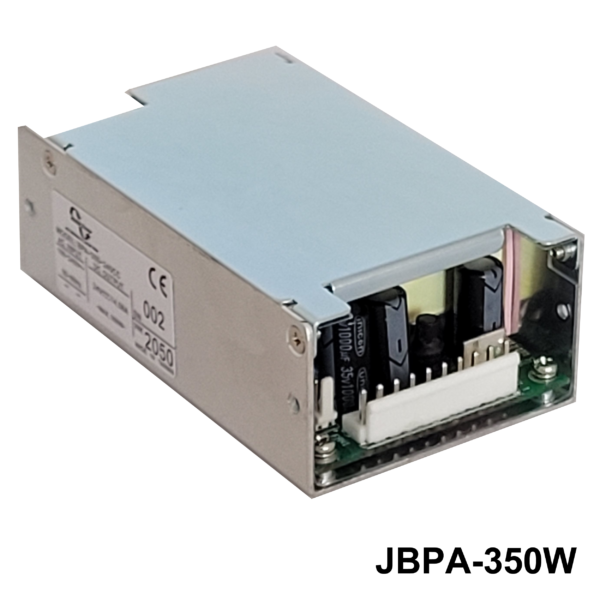

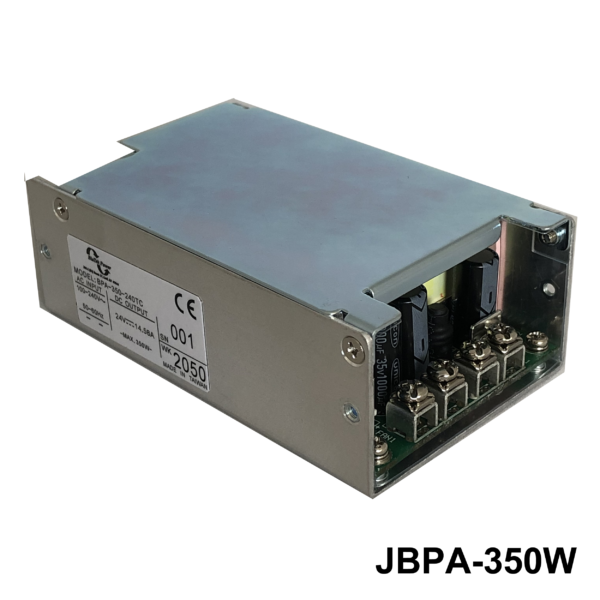

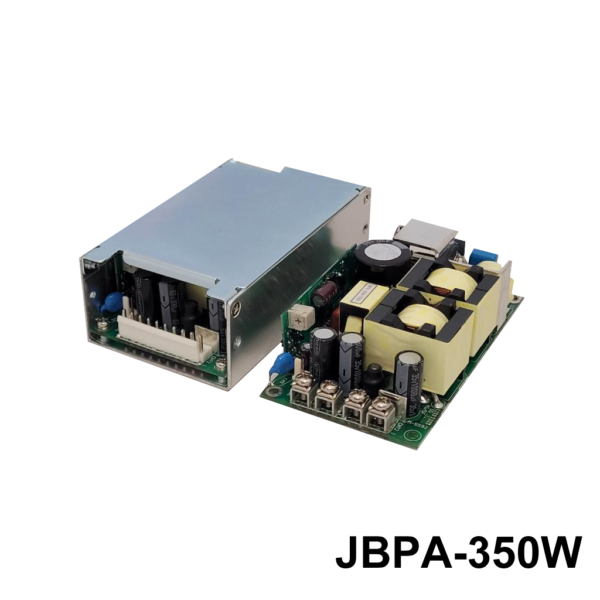

JBPA-350W Series

FEATURES:

  • Output Power: 350W
  • Input Voltage Range: 100–240 VAC Single Phase
  • Output Spec: 12V @ 29.2A
  • Efficiency: up tp 90%
  • Temperature: -20°C to +70°C Operation
  • EMI: EN61000 Class A
  • UL/ Demko Safety Approved
INPUT VOLTAGE: 100–240 VAC Single Phase
OUTPUT VOLTAGE(S) 12V @ 29.2A
POWER RATING: 350 WATTS

Description

The JBPA-350W Series is a highly reliable cPCI Serial Power supply used for CompactPCI Serial Systems. It’s capable of delivering up to 350W. With a full range input of 100–240 VAC Single Phase, this power supply module achieves the highest performance and efficiency by incorporating LLC half bridge topology and synchronous rectification.

JBPA-350W Series Datasheet
