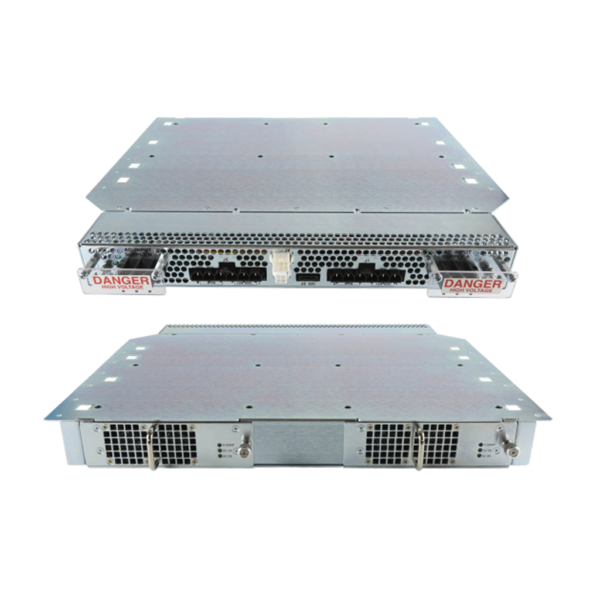

Specialty Rack Mount Switching Power Supplies
FEATURES:
- Single, dual, or individual unit AC (90-264 VAC) or DC input
- 12-54VDC Redundant Outputs with Choice of Standby Voltages
- Full Power to 50C Ambient with Derating to 70C
- 2 to 8 slots, single or mixed output voltages, up to 10,000 Watts total
- Standard configurations: 19.0″ to 23.0″ widths, 1U to 6U high
- Custom Performance & Mechanical Modifications Readily Available
- Hot swap: N+1 Redundant with internal Oring diodes
- >0.99 line Power Factor Corrected typical at AC 115V
- High Density
- Agency approvals (see spec sheets for details)
- Models can be ruggedized against high shock, vibration, and humidity to meet MIL-STD-810 requirements
- Description
- Models
Description
Jasper’s ultra-reliable Rack-Mount Specialty Power Supplies are most commonly used in redundant systems in applications such as nuclear plants, server rooms, security systems, medical applications, and communication systems where the highest quality hot swap power supplies and medical power supplies are required. Select models offer the following features:
- Single, dual, or individual unit AC (90-264 VAC) or DC input
- 12-54VDC Redundant Outputs with Choice of Standby Voltages
- Full Power to 50C Ambient with Derating to 70C
- 2 to 8 slots, single or mixed output voltages, up to 10,000 Watts total
- Standard configurations: 19.0″ to 23.0″ widths, 1U to 6U high
- Custom Performance & Mechanical Modifications Readily Available
- Hot swap: N+1 Redundant with internal Oring diodes
- >0.99 line Power Factor Corrected typical at AC 115V
- High Density
- Agency approvals (see spec sheets for details)
- Models can be ruggedized against high shock, vibration, and humidity to meet MIL-STD-810 requirements

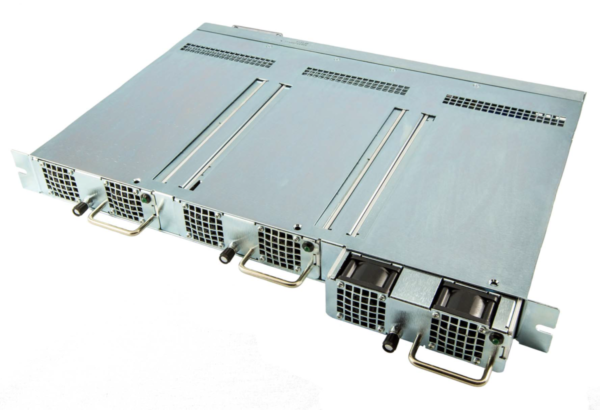

The Jasper Electronics Rack Panel System (RPS) series is available in a wide range of configurations with options to fit nearly any industrial, commercial, or military application. These units are designed to operate in individual output, redundant, and/or current share mode (N+1, N2), using our “Hot Swap” power supply modules. In redundant mode, it is not necessary to disconnect the input power source prior to installing or when removing a single module from a multiple module system, provided that the total output load demand on the remaining operational modules does not exceed their total output capacity.
Partial Models Are Shown Below – Please Contact The Factory For Finalized Configurations.
RPS Model Reference
Partial 1U Model Selection
| Module # (Click for data sheet) | Watts | Size | Output Voltages | 1U 1 Bay Model (Click For Outline Drawing) | 1U 2 Bay Model (Click For Outline Drawing) | 1U 3 Bay Model (Click For Outline Drawing) |
|---|---|---|---|---|---|---|
| HTL201 | 200 | 1.6 x 5 x 11.5" | 12-54V | RPS-HTL201-1U-1B-xxxx | RPS-HTL201-1U-2B-xxxx | RPS-HTL201-1U-3B-xxxx |
| HTL301 | 300 | 1.6 x 5 x 11.5" | 12-54V | RPS-HTL301-1U-1B-xxxx | RPS-HTL301-1U-2B-xxxx | RPS-HTL301-1U-3B-xxxx |
| HTL401 | 400 | 1.6 x 5 x 11.5" | 24-54V | RPS-HTL401-1U-1B-xxxx | RPS-HTL401-1U-2B-xxxx | RPS-HTL401-1U-3B-xxxx |
| HML501-2 | 500 | 1.6 x 5.2 x 10.5" | 12V | RPS-HML501-1U-1B-xxxx | RPS-HML501-1U-2B-xxxx | RPS-HML501-1U-3B-xxxx |
| HML601 | 600 | 1.6 x 5.2 x 10.5" | 24-54V | RPS-HML601-1U-1B-xxxx | RPS-HML601-1U-2B-xxxx | RPS-HML601-1U-3B-xxxx |
| HML801-2 | 650 | 1.6 x 5.2 x 10.5" | 12V | RPS-HML801-2-1U-1B-xxxx | RPS-HML801-2-1U-2B-xxxx | RPS-HML801-2-1U-3B-xxxx |
| HML801 | 800 | 1.6 x 5.2 x 10.5" | 24-54V | RPS-HML801-1U-1B-xxxx | RPS-HML801-1U-2B-xxxx | RPS-HML801-1U-3B-xxxx |
| HAL1201 | 1200 | 1.73 x 5 x 10.93" | 12-54V | RPS-HAL1201-1U-1B-xxxx | RPS-HAL1201-1U-2B-xxxx | RPS-HAL1201-1U-3B-xxxx |
| HAL1501 | 1500 | 1.73 x 5 x 10.93" | 12-54V | RPS-HAL1501-1U-1B-xxxx | RPS-HAL1501-1U-2B-xxxx | RPS-HAL1501-1U-3B-xxxx |
Partial 3U Model Selection
| Module # (Click for data sheet) | Watts | Size | Output Voltages | 3U 4 Bay Model (Click For Outline Drawing) | 3U 5 Bay Model (Click For Outline Drawing) | 3U 6 Bay Model (Click For Outline Drawing) |
|---|---|---|---|---|---|---|
| HTL201 | 200 | 1.6 x 5 x 11.5" | 12-54V | RPS-HTL201-3U-4B-xxxx | RPS-HTL201-3U-5B-xxxx | RPS-HTL201-3U-6B-xxxx |
| HTL301 | 300 | 1.6 x 5 x 11.5" | 12-54V | RPS-HTL301-3U-4B-xxxx | RPS-HTL301-3U-5B-xxxx | RPS-HTL301-3U-6B-xxxx |
| HTL401 | 400 | 1.6 x 5 x 11.5" | 24-54V | RPS-HTL401-3U-4B-xxxx | RPS-HTL401-3U-5B-xxxx | RPS-HTL401-3U-6B-xxxx |
| HML501-2 | 500 | 1.6 x 5.2 x 10.5" | 12V | RPS-HML501-3U-4B-xxxx | RPS-HML501-3U-5B-xxxx | RPS-HML501-3U-6B-xxxx |
| HML601 | 600 | 1.6 x 5.2 x 10.5" | 24-54V | RPS-HML601-3U-4B-xxxx | RPS-HML601-3U-5B-xxxx | RPS-HML601-3U-6B-xxxx |
| HML801-2 | 650 | 1.6 x 5.2 x 10.5" | 12V | RPS-HML801-2-3U-4B-xxxx | RPS-HML801-2-3U-5B-xxxx | RPS-HML801-2-3U-6B-xxxx |
| HML801 | 800 | 1.6 x 5.2 x 10.5" | 24-54V | RPS-HML801-3U-4B-xxxx | RPS-HML801-3U-5B-xxxx | RPS-HML801-3U-6B-xxxx |
| HAL1201 | 1200 | 1.73 x 5 x 10.93" | 12-54V | RPS-HAL1201-3U-4B-xxxx | RPS-HAL1201-3U-5B-xxxx | RPS-HAL1201-3U-6B-xxxx |
| HAL1501 | 1500 | 1.73 x 5 x 10.93" | 12-54V | RPS-HAL1501-3U-4B-xxxx | RPS-HAL1501-3U-5B-xxxx | RPS-HAL1501-3U-6B-xxxx |
Partial 4U Model Selection
| Module # (Click for data sheet) | Watts | Size | Output Voltages | 4U 7 Bay Model (Click For Outline Drawing) | 4U 8 Bay Model (Click For Outline Drawing) |
|---|---|---|---|---|---|
| HTL201 | 200 | 1.6 x 5 x 11.5" | 12-54V | RPS-HTL201-4U-7B-xxxx | RPS-HTL201-4U-8B-xxxx |
| HTL301 | 300 | 1.6 x 5 x 11.5" | 12-54V | RPS-HTL301-4U-7B-xxxx | RPS-HTL301-4U-8B-xxxx |
| HTL401 | 400 | 1.6 x 5 x 11.5" | 24-54V | RPS-HTL401-4U-7B-xxxx | RPS-HTL401-4U-8B-xxxx |
| HML501-2 | 500 | 1.6 x 5.2 x 10.5" | 12V | RPS-HML501-4U-7B-xxxx | RPS-HML501-4U-8B-xxxx |
| HML601 | 600 | 1.6 x 5.2 x 10.5" | 24-54V | RPS-HML601-4U-7B-xxxx | RPS-HML601-4U-8B-xxxx |
| HML801-2 | 650 | 1.6 x 5.2 x 10.5" | 12V | RPS-HML801-2-4U-7B-xxxx | RPS-HML801-2-4U-8B-xxxx |
| HML801 | 800 | 1.6 x 5.2 x 10.5" | 24-54V | RPS-HML801-4U-7B-xxxx | RPS-HML801-4U-8B-xxxx |
| HAL1201 | 1200 | 1.73 x 5 x 10.93" | 12-54V | RPS-HAL1201-4U-7B-xxxx | RPS-HAL1201-4U-8B-xxxx |
| HAL1501 | 1500 | 1.73 x 5 x 10.93" | 12-54V | RPS-HAL1501-4U-7B-xxxx | RPS-HAL1501-4U-8B-xxxx |
*xxxx denotes model suffixes for other options including input and output connections, output power sharing, signal connections, and more. Please consult factory for details on all options.
Typical Input Power Connection Options
- Single rear panel mounted terminal block (all models).
- Dual rear panel mounted terminal blocks (6 and 8 bay models only). User may determine now many bays to be powered by each input (all dual input versions).
- Single input or Dual input studs. Rear panel, typically for use in high input current applications.
- Single input or Dual input IEC type connectors for detachable cord connections. Rear panel, typically for low current, AC applications only.
- Single input or Dual input IEC type connectors for detachable cord connections. User accessible on the front panel, typically for low current, AC applications only. Uses 1 bay.
- Individual IEC type connectors for detachable cord connections. User accessible on the front of the installed power supply. AC applications only.
- Many more options are available – please consult factory for details.
Typical Output Power Connection Options
- Rear panel mounted terminal blocks. Single or multiple, dependent on total output power level selected.
- Rear panel mounted studs. Single or multiple, 2 or 4 studs/output.
- Many more options are available – please consult factory for details.
Output Sharing Options
- Single output – all power module outputs common (shared);
- Multiple outputs – individual connections for each power module output (no sharing);
- Multiple outputs – user determined combinations of shared outputs.
Signal Connection Options
- Rear panel mounted, 9- or 15-position subminiature “D” receptacle Amp type connector.
- 1 per rack
- 1 per output
Connector functions selected by the user from those available on the power supply module selected. Typically they are: power fail, DC-OK, remote enable and/or remote sense.
- Rear panel mounted, user specified connector.
- Many more options are available – please consult factory for details.
Blank Panels Options
- For applications not requiring the use of all available bays in a rack, the user may specify in which bays the factory shall install a blank panel. Panels may also be ordered separately for user installation.
