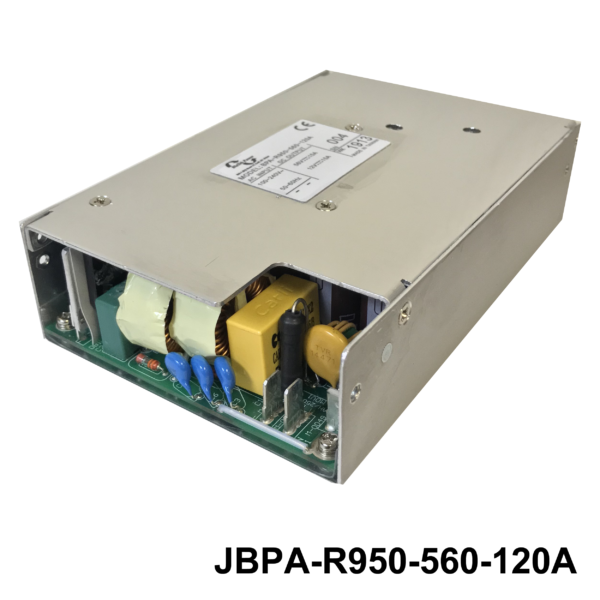

JBPA-R950-560-120A Series
FEATURES:
- Output Power: 950W
- Input Voltage Range: 100–240 VAC Single Phase
- Output- Double Output: 56V @ 15A, 12V@16.8A
- Efficiency- up to 92%
- Temperature: -40°C to +70°C Operation
- Signals: PS ON
- EMI: EN61000 Class A
- UL/Demko Safety Approved
- Description
- Data Sheets
Description
The JBPA-R950-560-120A is a highly reliable cPCI Serial Power supply used for CompactPCI Serial Systems. It’s capable of delivering up to 950W. With a full range input of 90-264 VAC, this power supply module achieves the highest performance and efficiency by incorporating LLC half bridge topology and synchronous rectification.
