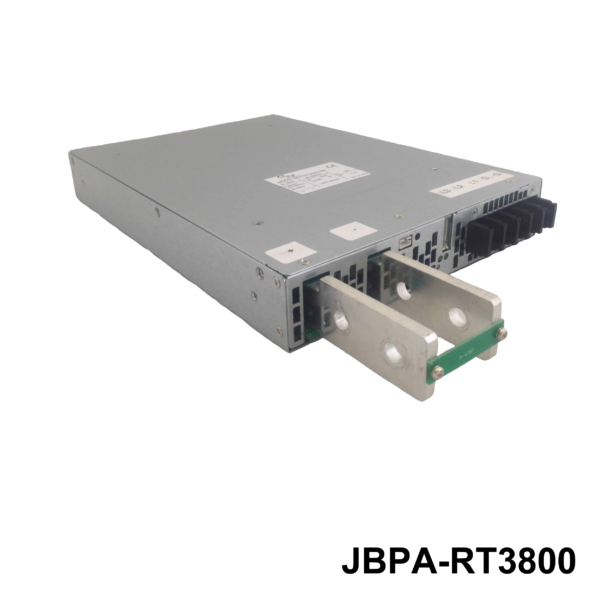

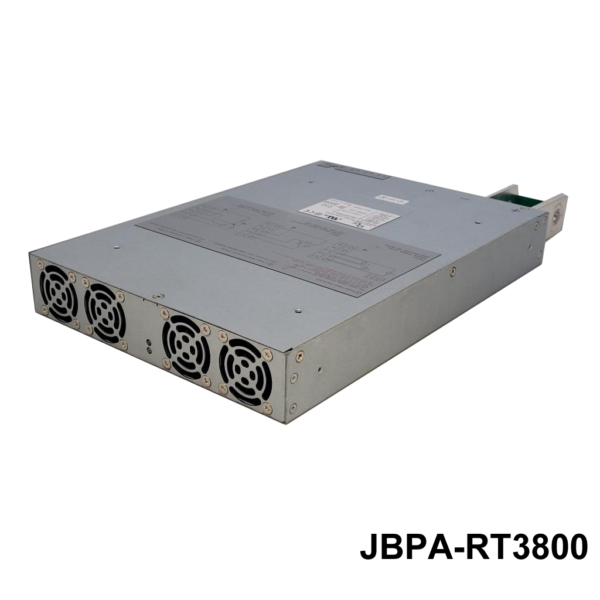

JBPA-RT3800 Series
FEATURES:
- Output Power: 3800W
- Input Voltage: 200–480VAC Single or Three Phase
- Output Spec: 4-8.8 VDC @ 313A, 12VDC Standby @ 2A
- Efficiency: 93%
- Temperature: -40°C to +70°C Operation
- Signals: AC OK, DC OK, Alert Signals
- EMI: EN55022 Class A
- UL/ Demko Safety Approved
- Description
- Data Sheets
Description
The JBPA-RT3800 Series is a highly reliable cPCI Serial Power supply used for CompactPCI Serial Systems. It’s capable of delivering up to 3800W. With a full range input of 200–480 VAC Single or three Phase, this power supply module achieves the highest performance and efficiency by incorporating LLC half bridge topology and synchronous rectification.
